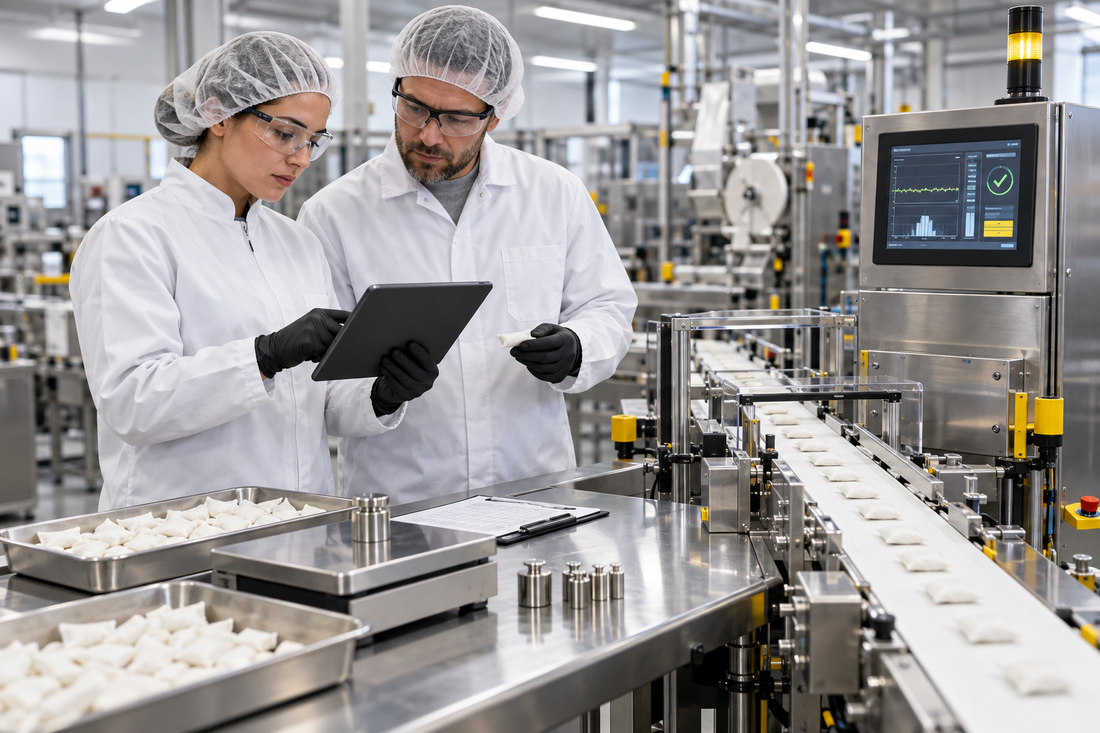

Quality engineers reviewing caffeine pouch fill-weight control on an automated production line

Caffeine Pouch Fill-Weight Control: A B2B Quality Guide

October 6, 2026

Caffeine Pouch Fill-Weight Control A B2B Quality Guide

Summary

A caffeine pouch line can produce an acceptable average fill weight while still making too many light and heavy pouches. That distinction matters because a can is sold as a set of individual units, not as one averaged batch. Brand owners therefore need a control system that separates target setting, equipment variation, time-based drift, laboratory verification and release decisions.

This guide explains how to build that system. It shows why net pouch weight is a useful process signal but not a substitute for caffeine assay, how to design a time-based sampling plan, when control charts and capability indices become meaningful, and what evidence a brand should request from an OEM. The commercial objective is straightforward: detect drift while the line is running, document what happened, and release product using evidence that matches the approved specification.

Why Average Fill Weight Is Not Enough
Separate Net Weight From Active Content
Define a Measurement System Before Setting Limits
Sample the Run in Time Order
Use Control Limits and Specification Limits Correctly
Build a Reaction Plan for Drift
Connect Process Data to Batch Release
Turn OEM Data Into a Brand Asset
Frequently Asked Questions

Why Average Fill Weight Is Not Enough

Suppose a line targets 650 mg of blend per pouch. Ten measurements could average exactly 650 mg even if the first five are consistently light and the last five are consistently heavy. The average conceals the direction of travel. A second run could produce the same average with alternating overfill and underfill, pointing to a different mechanical cause. A third could show a stable center but excessive scatter. Those runs are not operationally equivalent.

Fill-weight control therefore has three separate questions:

Is the process centered on the intended target?
Is the short-term variation acceptably narrow?
Is the pattern stable over time, or is it drifting, cycling or responding to an assignable cause?

For products marketed in the United States as dietary supplements, the applicable requirements depend on the final product, label and intended use. The FDA dietary supplement CGMP guide explains that manufacturers must prepare and follow a master manufacturing record for each formulation and batch size, identify points where control is necessary, and record actual monitoring results in the batch production record. That is a regulatory foundation, not a ready-made pouch sampling plan. The brand and manufacturer still have to translate product risk and process knowledge into suitable specifications, methods and actions.

The first strategic insight is that a fill-weight report should be a time series, not only a batch average. Losing sequence data removes much of the evidence needed to diagnose feeder depletion, powder segregation, fabric tension changes, start-up instability or operator adjustment.

Separate Net Weight From Active Content

Net pouch weight is quick to measure and useful for monitoring the filling operation. It is not automatically a direct measurement of caffeine content.

The relationship depends on blend uniformity. If caffeine and carriers remain uniformly distributed, net weight may correlate with active content within an established process. If the blend segregates by particle size, density or electrostatic behavior, two pouches with similar total weight can contain different amounts of caffeine. Moisture or volatile flavor additions can also change total mass without changing the active in the same proportion.

Brand owners should therefore distinguish four specifications:

Control layer	What it measures	Primary decision
Blend uniformity	Distribution of caffeine and other critical components before filling	Is the material suitable for consistent dosing?
Individual net weight	Total filled mass in a single pouch	Is the dosing mechanism stable and centered?
Composite or individual assay	Measured caffeine content using a suitable analytical method	Does active content meet the approved product specification?
Finished-unit attributes	Seal, dimensions, appearance, moisture and physical integrity	Is the pouch acceptable as a packaged unit?

The FDA regulation on determining whether specifications are met requires monitoring of in-process points where control is necessary and detection of deviations that may lead to a failure to meet specifications. It also requires appropriate, scientifically valid tests or examinations for the selected finished-batch specifications. The implication for a caffeine pouch program is practical: do not ask one convenient measurement to carry every quality conclusion.

Weight monitoring and chemical testing should support each other. Weight data provide speed and line-level visibility. Assay data test the assumption that the blend and dosing system together deliver the declared composition. The connection between them should be demonstrated during development and revisited after relevant changes.

Define a Measurement System Before Setting Limits

A tight specification has little value if the measurement process cannot reliably resolve the differences that matter. Before comparing operators, machines or batches, define how an individual pouch will be measured.

At minimum, the procedure should state:

the balance resolution and working range;
calibration or verification frequency and reference weights;
how the empty pouch-material tare is established;
whether measurements use gross unit weight or net fill weight;
sample conditioning time and environmental expectations;
handling rules for damaged, leaking or visibly contaminated units;
rounding, transcription and electronic-record rules;
the person responsible for reviewing anomalous results.

Tare deserves particular attention. Pouch fabric, seam geometry and cut length contribute mass. If empty-material variation is a meaningful share of the total unit weight, subtracting one nominal tare from every finished unit can create false precision. A development study can compare individual empty wrappers, representative roll-level tare values and finished gross weights to determine what method is practical and sufficiently informative.

Measurement variation should also be separated from process variation. Repeatedly weighing the same retained pouch under controlled conditions estimates repeatability; having different trained operators repeat the procedure helps reveal reproducibility differences. The point is not to perform a ritual statistical study for every SKU. It is to confirm that the measurement system is capable of detecting the shifts that trigger a manufacturing decision.

For a brand evaluating a caffeine pouch contract manufacturing partner, this is a useful audit question: ask to see the measurement procedure, balance checks and data-review workflow, not only a certificate that lists a final mean.

Sample the Run in Time Order

Sampling should represent the actual sources of variation. A handful of pouches collected at the end of a run cannot describe start-up, refill events, line stops or progressive drift.

A practical development or validation study can divide the run into operational phases:

start-up after settings are established;
early steady-state production;
material hopper or feeder refill;
planned pauses and restarts;
mid-run and late-run steady state;
end-of-run conditions as the feed system depletes.

Within each phase, collect small rational subgroups close together in time. The NIST statistical handbook describes rational subgroups as multiple readings used to monitor short-term variation, with subgroup sizes of two to six being common. The precise design must suit the equipment and risk; the important principle is that units inside a subgroup should reflect a coherent snapshot, while successive subgroups show how the process changes over time.

Record contextual data with the weights. Useful fields include timestamp, machine or lane, operator, blend lot, roll of pouch material, hopper level, relevant settings, line speed, room conditions where material behavior is sensitive, and any adjustment or interruption. Without context, an out-of-control signal becomes a number without a cause.

Caffeine pouch weight samples arranged over time beside a statistical process control chart

Sampling frequency should be justified rather than copied from another product. A free-flowing low-load formula on a mature line may support one approach; a high-load, hygroscopic or electrostatically difficult blend may require more frequent checks, especially at start-up and after intervention. A sampling plan should also state what happens between a last-accepted check and a failed check. That interval defines the material potentially affected by the signal and therefore influences line-clearance, segregation and disposition decisions.

Use Control Limits and Specification Limits Correctly

Specification limits describe what the organization has defined as acceptable for the product or process. Control limits describe the expected behavior of a process based on its own data. They answer different questions.

A pouch can fall inside specification while still creating a statistical signal that the process has changed. Conversely, a stable process can remain predictably too variable or off-center to meet a demanding specification. Treating every in-spec reading as proof of control delays investigation; treating every point near a control limit as a product failure confuses monitoring with acceptance.

The NIST process stability guidance notes that capability should not be assessed before stability has been demonstrated. Once the process is stable and the data are suitable for the intended model, capability indices compare process variation with specification width. NIST defines Cpk as the smaller standardized distance from the process mean to the upper or lower specification limit, so it reflects both spread and off-centering.

Three cautions matter for buyers:

A capability number is only as credible as the sampling design, measurement system and distribution assumptions behind it.
A universal Cpk target should not be invented for caffeine pouches. The brand and OEM should define acceptance criteria in the context of product risk, measurement method, development evidence and quality-system expectations.
Capability for fill weight does not prove capability for caffeine assay unless the relationship between the two has been established.

Ask the OEM to provide the chart, underlying measurements and data exclusions, not merely a capability index in a presentation. A result based on mixed SKUs, adjusted data or a non-stable run can look precise while answering the wrong question.

Build a Reaction Plan for Drift

Monitoring without a pre-agreed reaction plan turns data into decoration. The plan should define signals, immediate containment, investigation, adjustment authority and documentation.

A useful out-of-control action plan can distinguish among four situations:

Signal	Immediate action	Investigation focus	Product decision
Single extreme unit	Confirm measurement and isolate the unit	Balance error, damaged pouch, transient dosing event	Assess adjacent interval under the approved procedure
Mean shift across subgroups	Pause or contain affected output	Feeder setting, bulk density, hopper condition, operator adjustment	Define potentially affected time window
Increasing variation	Escalate before units exceed limits	Flow inconsistency, vibration, fabric tracking, seal contamination	Increase sampling and evaluate disposition
Cyclic pattern	Maintain sequence evidence and inspect the machine cycle	Multi-lane behavior, auger rotation, intermittent refill or mechanical timing	Assess whether the cycle creates unacceptable units

NIST describes process control as active intervention after monitoring detects an out-of-control situation and notes that an out-of-control action plan can guide the responsible engineer through corrective steps. In pouch manufacturing, the plan should prevent informal “adjust until the next sample passes” behavior. Every meaningful adjustment should have an owner, reason, timestamp and defined recheck.

The plan should also prevent over-adjustment. Operators who respond to ordinary random variation can make the process less stable. Settings should change when evidence and the approved procedure support intervention, not because one perfectly acceptable reading happened to be above target.

Connect Process Data to Batch Release

In-process data help control production, but batch release requires a complete decision package. The master record, batch record, testing results, deviations and material review should tell one coherent story.

The FDA CGMP guide states that a batch production record should include actual monitoring results, tests or examinations, documentation that finished specifications are met, and quality-control review and release or rejection decisions. FDA warning letters show what the absence of this system looks like. In a 2022 warning letter to Quality Supplement Manufacturing, FDA cited failures involving finished-product specifications and quality-control disposition; the letter also refers to a fill-weight range in a batch record. A warning letter is case-specific and not a pouch specification template, but it illustrates why recording a range is not enough when the surrounding specification and disposition system is incomplete.

For caffeine pouches, a release packet may include:

approved formula and master manufacturing record revision;
component and blend-lot traceability;
equipment, line and pouch-material identifiers;
chronological individual or subgroup fill-weight results;
documented adjustments, stops and restart checks;
seal and physical-integrity inspection results;
caffeine assay or other selected finished-product tests;
yield and reconciliation results;
deviations, investigations, rework or reprocessing documentation;
final quality review and release authorization.

Laboratory technician weighing caffeine pouches during OEM batch release testing

Brands should agree in advance on what data appear on the certificate of analysis and what remains in the supporting batch packet. A COA is a summary, not the entire quality record. During supplier qualification, request anonymized examples that show how the manufacturer handles both a normal run and a run with a documented deviation.

Turn OEM Data Into a Brand Asset

Fill-weight data are often treated as factory paperwork. Used well, they can become a commercial and supply-chain asset.

First, the data create a baseline for change control. When a new caffeine grade, carrier, flavor system, pouch fabric, machine or production site is proposed, the brand can compare the new process with established behavior rather than relying on a few preferred samples.

Second, the data improve cost decisions. Overfill consumes material and may conceal a poorly centered process. Aggressively reducing the target without reducing variation, however, increases the risk of light units. The economic opportunity is not simply to lower average weight; it is to reduce variation and then center the process with an appropriate margin to the approved limits.

Third, trend data reveal maintenance and scale-up needs. A gradual change in dispersion or adjustment frequency may signal wear, buildup, feeder instability or a formula that is sensitive to longer run times. Comparing lines and sites using a shared data definition also makes capacity planning more credible.

The brand should therefore define a minimum data package in its quality agreement. It can specify file format, sample identifiers, units, sequence, metadata, retention period, notification thresholds and access rights. Structured data are easier to review than photographs of paper sheets and more useful for multi-batch trend analysis.

When selecting a private label caffeine pouch manufacturer, ask one revealing question: “If fill-weight variability rises halfway through the run but all sampled units remain inside specification, what happens next?” A mature answer will discuss trending, investigation thresholds, containment logic and documented review. A weak answer will say only that the final average passes.

Frequently Asked Questions

Does consistent fill weight guarantee consistent caffeine content?

No. Fill weight monitors the total mass delivered into the pouch. Caffeine-content consistency also depends on blend uniformity, material segregation, analytical method and the demonstrated relationship between net weight and active content. Weight and assay data should be connected through development evidence rather than assumed to be interchangeable.

How many pouches should an OEM weigh per batch?

There is no universal number that fits every formula, filler, line speed, batch size and risk profile. The plan should capture relevant phases and interventions, provide enough data to detect meaningful shifts, and define the affected interval if a check fails. Development and validation data should support the commercial frequency.

Should a brand specify an acceptable percentage weight variation?

The brand and manufacturer should establish justified limits and methods for the actual product. Copying a percentage from capsules, tea bags or another pouch SKU can ignore differences in tare mass, formula behavior, active loading and measurement capability. The specification should connect to product quality and process evidence.

Is an automatic checkweigher enough?

An automatic system can provide high-frequency information and rejection capability, but it still requires a suitable measurement range, calibration or verification, validated settings, data integrity and an action plan. Offline measurements may remain useful for independent checks, investigation and attributes the inline system does not measure.

What should a brand ask to see during an OEM audit?

Ask for the approved measurement procedure, balance or checkweigher verification records, chronological sample data, reaction plan, examples of documented adjustments, links between fill-weight and assay evidence, deviation handling, and quality-release authorization. Review how records are generated and controlled, not only the final certificate.

Can process capability be calculated from one pilot run?

A pilot run can provide early information, but capability analysis requires a stable process, appropriate sampling, a capable measurement system and enough representative observations. A single short run may describe that trial without representing long-term commercial performance. Use the result as evidence with stated limitations, not as a permanent guarantee.

Build the Control System Before the Volume Arrives

The strongest fill-weight program is designed during development, not after a distributor reports inconsistent pouches. It begins with a clear target and measurement method, preserves time order, connects weight to assay and finished-unit quality, and gives operators a written response to drift. Batch release then becomes the final review of a controlled process rather than an attempt to reconstruct it.

If you are developing a new SKU or reviewing an existing OEM, Scream Caffeine can help structure a sampling plan, pilot run, data package and release workflow for scalable caffeine pouch OEM manufacturing. Contact hi@ScreamCaffeine.com or WhatsApp +86 134 1883 0876 to discuss the product specification, line trial and quality evidence required for your project.

Sources and Commentary

FDA Dietary Supplement CGMP Small Entity Compliance Guide. This is the primary regulatory guide used for U.S. dietary-supplement manufacturing concepts in the article. It supports written master records, in-process controls, actual monitoring results and quality release, but it does not prescribe a universal caffeine-pouch sampling frequency.
21 CFR 111.75. The regulation connects in-process monitoring with deviation detection and scientifically valid methods. The article applies that principle to weight and assay as complementary evidence; product classification and market-specific requirements still require qualified review.
NIST Process Monitoring and Control Handbook. NIST provides the statistical framework for stability, control charts, rational subgroups and capability. The original insight added here is the operational translation: preserve pouch sequence and intervention metadata so a statistical signal can lead to a manufacturing decision.
FDA Warning Letter to Quality Supplement Manufacturing. The case is cited as an enforcement example concerning specifications and quality disposition, not as a source of universal pouch limits.
